RS485 Tcp Ip Ultrasonic Parking Guidance sensor 2.5m

Name: RS485 Tcp Ip Ultrasonic Parking Guidance sensor 25m
Brand: Carsafe
Price: 1 USD

Brand Name : Carsafe

Model Number : CA-ID2220

Certification : CE, ISO

Place of Origin : SHENZHEN, CHINA

MOQ : 1 set

Price : negociate

Payment Terms : T/T

Supply Ability : 5000 sets/month

Delivery Time : 20 working days

Packaging Details : Wooden box

Working voltage : DC24V + 10%

Communication : RS485

Warranty : 1 year

Sensing distance : 0.1~3.5m

Size : 100mm*48mm (D)

Detection range : 15 degree angle

Contact Now

15 Degree Angle Ultrasonic Parking Guidance System 0.1 3.5m Sensing Distance

Detector in the parking guidance system, based on the principle of ultrasonic transmitting and receiving reflected wave.

Ultrasonic Detector in the parking guidance system, the detecting distance is measured by the time difference between transmitting and receiving reflected wave, so as to judge whether there is a vehicle in the parking space.

Characteristics

The detection distance is adjustable.

Low power design and convenient construction.

Integrated design of transmitting and receiving reflection wave, convenient installation.

It can configure the hanging parking lock according to the demand.

Power supply DC 24 V;

Working temperature: - 25 ℃ to 70 ℃;

Detection accuracy: > 99.9%

Measuring distance: 1m ~ 3.5m (adjustable by dial switch).

Power consumption: < 1W

RS485 Tcp Ip Ultrasonic Parking Guidance sensor 2.5m

Technical parameters:

Power consumption	≤1W
Working Environment	Indoor
Work voltage	24V DC
LED brightness	9000cd/m2 (green), 5000cd/m2 (green)

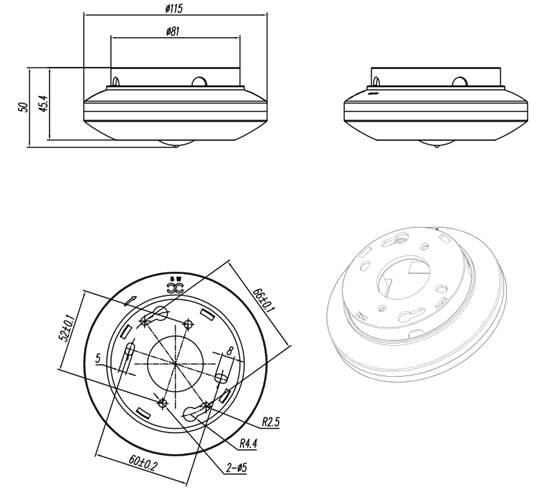

Size	Φ115mm(L)*50mm(H)
Working temperature	25℃ ~70℃
Working humidity	≦95%, no condensing
Model	CA-YN0141
Measuring distance	1m ~ 3.5m (adjustable by dial switch)
Communication mode	TCP/IP

Case
